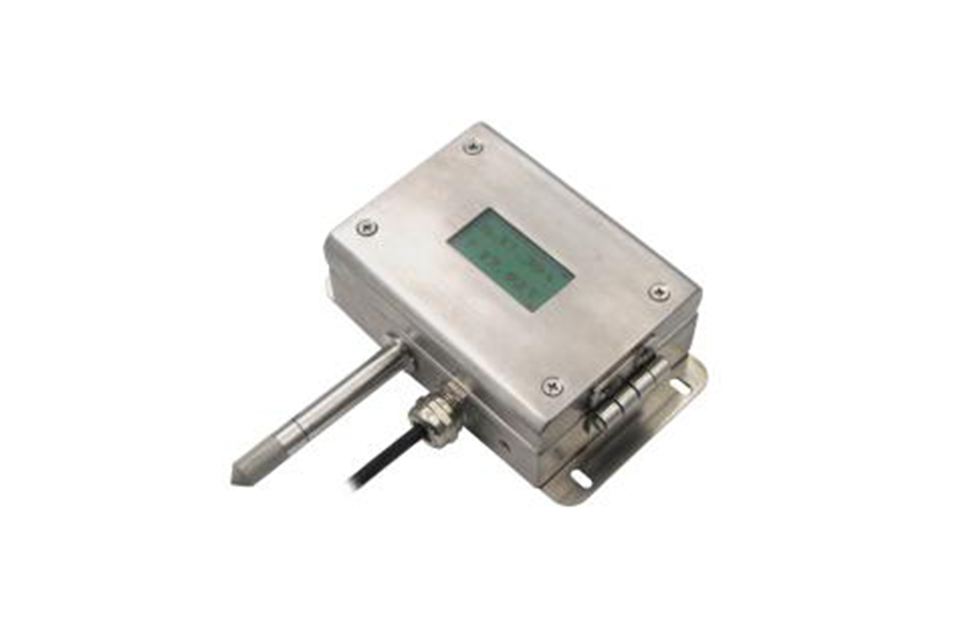

TH160EX-N Nuclear Power Industry Intrinsically Safe Explosion-Proof Multi-Parameter Temperature and Humidity Transmitter

In nuclear power and other demanding industrial fields, it is necessary to monitor the temperature and humidity parameters of certain explosive gas medias. TH160EX-N is an industrial-grade intrinsically safe explosion-proof multi-parameter temperature and humidity transmitter with explosion-proof class Ex ia II C T6 Ga. The transmitter and probe can be installed in the danger zone, and the probe can be installed in the 0 zone of danger zone. In addition to measuring temperature and humidity parameters, it can be used to measure the dew point, frost point, enthalpy value, partial pressure of water vapor, absolute humidity, mixing ratio and other gas humidity parameters. At the same time, parameters such as dissolved water activity and absolute water content in dangerous oil products can also be measured. Output signal 4 ... 20mA or RS485 is optional.

The shell and probe materials of the TH160EX-N transmitter are made of 316 stainless steel which is firm and durable, Probe temperature resistance range is -70 ... 190 ° C, with pressure resistance up to 20Bar, suitable for most industrial site application conditions. TH160EX-N has passed anti-seismic, irradiation aging and other related nuclear grade type tests, and the overall irradiation tolerance dose can reach 350Gy.

Technical Features

Output signal: two ways 4 ... 20mA (two-wire system) or RS485

Output parameter: temperature, relative humidity, dew point, frost point, wet bulb temperature, enthalpy value, partial pressure of water vapor, mixed ratio, absolute humidity, moisture activity in oil

Shell material: 316 stainless steel

Explosion-proof class: Ex ia II C T6 Ga

Calibration interface: single-point or two-point calibration via calibration button

Installation method: wall, pipe, split probe

Display module: optional

Typical Application

Environmental monitoring of explosive gases in nuclear power industry

Technical Data

Input and output

Operating voltage	20 ... 36V DC	Current output	Two ways 4 ... 20mA RL < 500 Ohm
Power consumption	＜ 20mA (current output)		Channel precision: ±0.2%FS
	＜ 6mA (digital output)	Digital output	RS485 (Modbus RTU)

Measurement Parameter

Relative humidity



Temperature

Measurement range

0 ... 100%RH

Measurement range

−40 … +190°C

Measurement precision

±1%RH (0 … 90%RH & 20℃)

Measurement precision

±0.2°C (20°C)

Calibration error

±0.5%RH (0 … 90%RH)

Calibration error

±0.1°C

±0.8%RH (40 … 95%RH)

τ₆₃ response time

30s (probe fitted with stainless steel sintered filter)

- -

- -

Humidity sensitive element

High molecular polymer humidity-sensitive capacitor

Temperature sensitive element

Pt1000 (Grade 1/3B, DIN EN 60751)

The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.

Technical Specification

Wiring connection

The maximum cable diameter of the terminal is 1.5mm²

Operating pressure

20Bar (high temperature and high pressure split probe type)

Shell material

Aluminium alloy

Cable connector

M20*1.5 gland connector (threading diameter 6...12mm)

Operating temperature

Transmitter: -40 ... 80℃ (without display)

Protection grade

IP65

-20 ... 60℃ (with display)

Probe protection

Stainless steel sintering, stainless steel grille, stainless steel pore

Probe: -40 ... 80℃ (normal temperature split probe type)

Electromagnetic compatibility

EN61326-1 EN61326-2-3

      -40 ... 190℃ (high temperature and high pressure split probe type)

Seismic test

HAF-J0053 / GB13625

Storage temperature

-20 ... 60℃

Irradiation test

350Gy cumulative γ irradiation dose, yellow zone

Data download:

TH160EX-N Nuclear Power Industry Intrinsically Safe Explosion-Proof Multi-Parameter Temperature and Humidity Transmitter Product Manual

Relative humidity		Temperature
Measurement range	0 ... 100%RH	Measurement range	−40 … +190°C
Measurement precision	±1%RH (0 … 90%RH & 20℃)	Measurement precision	±0.2°C (20°C)
Calibration error	±0.5%RH (0 … 90%RH)	Calibration error	±0.1°C
	±0.8%RH (40 … 95%RH)
τ₆₃ response time	30s (probe fitted with stainless steel sintered filter)	- -	- -
Humidity sensitive element	High molecular polymer humidity-sensitive capacitor	Temperature sensitive element	Pt1000 (Grade 1/3B, DIN EN 60751)

Wiring connection	The maximum cable diameter of the terminal is 1.5mm²	Operating pressure	20Bar (high temperature and high pressure split probe type)
Shell material	Aluminium alloy	Cable connector	M20*1.5 gland connector (threading diameter 6...12mm)
Operating temperature	Transmitter: -40 ... 80℃ (without display)	Protection grade	IP65
	-20 ... 60℃ (with display)	Probe protection	Stainless steel sintering, stainless steel grille, stainless steel pore
	Probe: -40 ... 80℃ (normal temperature split probe type)	Electromagnetic compatibility	EN61326-1 EN61326-2-3
	-40 ... 190℃ (high temperature and high pressure split probe type)	Seismic test	HAF-J0053 / GB13625
Storage temperature	-20 ... 60℃	Irradiation test	350Gy cumulative γ irradiation dose, yellow zone
