TH160EX Industrial Grade Intrinsically Safe Explosion-Proof Multi-Parameter Temperature and Humidity Transmitter

The clean rooms, laboratories or other high-standard spaces in the field of fine industry require strict control of temperature and humidity; However, the dangerous and explosive volatile gases may be produced in some areas, so the temperature and humidity sensor needs to have explosion-proof function.

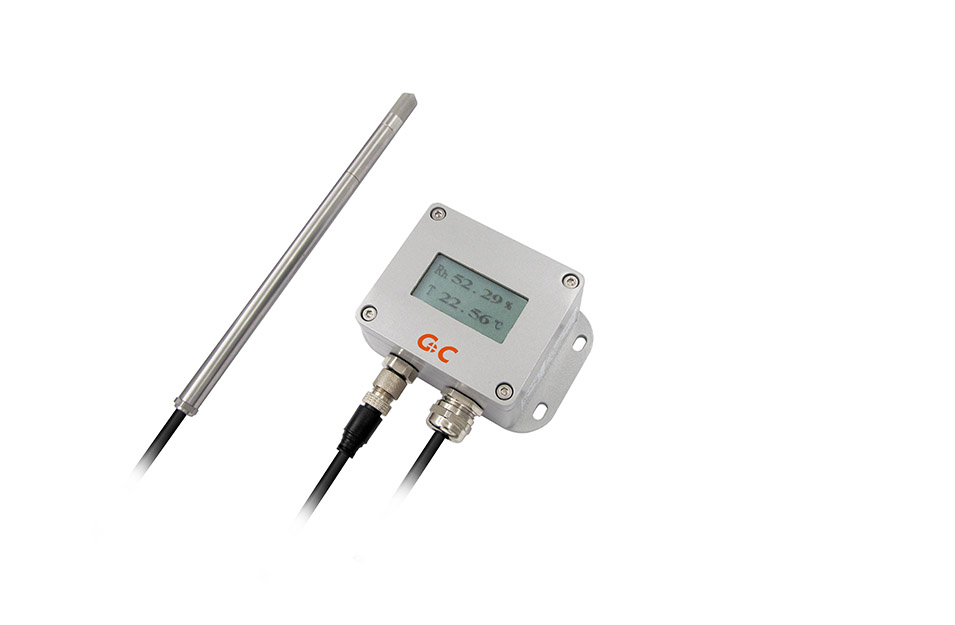

TH160EX is specially used for the temperature and humidity measurement in explosive and hazardous gas environments. In addition to temperature and humidity parameters, it can also measure other humidity parameters such as dew point, frost point, enthalpy value. Especially for the biopharmaceutical clean room O3 or VHP sterile environment, the probe can be equipped with VHP filter PF04, which micropores are filled with the MnO2 composite catalyst with the particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to achieve the purpose of protecting the probe and humidity-sensitive element.

Technical Features

Output signal: two ways 4~20mA or RS485

Output parameter: temperature, relative humidity, dew point, frost point, wet bulb temperature, enthalpy value, partial pressure of water vapor, mixed ratio, absolute humidity

Shell material: Aluminium alloy

Explosion-proof class: Ex ia II C T4 Ga

Calibration interface: single-point or two-point calibration via calibration button

Installation method: wall, pi6pe, split probe, wall-mounted split probe

Display module: fixed display or touch display

Typical Applications

Environment monitoring of explosive gas in fine industy

Technical Data

Input and output

Operating voltage	24V DC ±20%	Current output	4 ... 20mA RL < 500 Ohm
Power consumption	＜20mA (current output)		Output channel precision: ±0.2%FS (full scale)
	＜ 10mA (digital output)	Digital output	RS485 (Modbus RTU)

Measurement Parameter

Relative humidity		Temperature
Measurement range	0 ... 100%RH	Measurement range	−40 … +80°C
Measurement precision	±1%RH (0 … 90%RH & 20℃)	Measurement precision	±0.2°C
Calibration error	±0.5%RH (0 … 90%RH)	Calibration error	±0.1°C (20°C)
	±0.8%RH (40 … 95%RH)
τ₆₃ response time	30s (probe fitted with stainless steel sintered filter)	- -	- -
Humidity sensitive element	High molecular polymer humidity-sensitive capacitor	Temperature sensitive element	Pt1000 (Grade 1/3B, DIN EN 60751)

The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.

Technical Specification

Wiring connection	The maximum cable diameter of the terminal is 1.5mm²	Cable connector	M16*1.5 gland connector (threading diameter 4.5~10mm)
Storage temperature	-20 ... 60℃	Protection grade	IP65
Operating temperature	With display: -40 ... 80℃	Probe protection	Stainless steel sintering, H2O2, PTFE, etc.
	Without display: -20 ... 80℃	Electromagnetic compatibility	EN61326-1 EN61326-2-3
