Technical Features
Built-in desiccant fully-automatic regeneration, no baking, no replacement
Extra-wide humidity range 3%RH～95%RH
Extra-large test chamber φ150×200mm
High stability, fluctuation better than ±0.1%RH/±0.05℃
High uniformity, better than 0.1%RH
Short stabilization time
Typical Applications
Calibration laboratory
Measurement unit
Temperature and humidity instrument manufacturer
Operating Principle

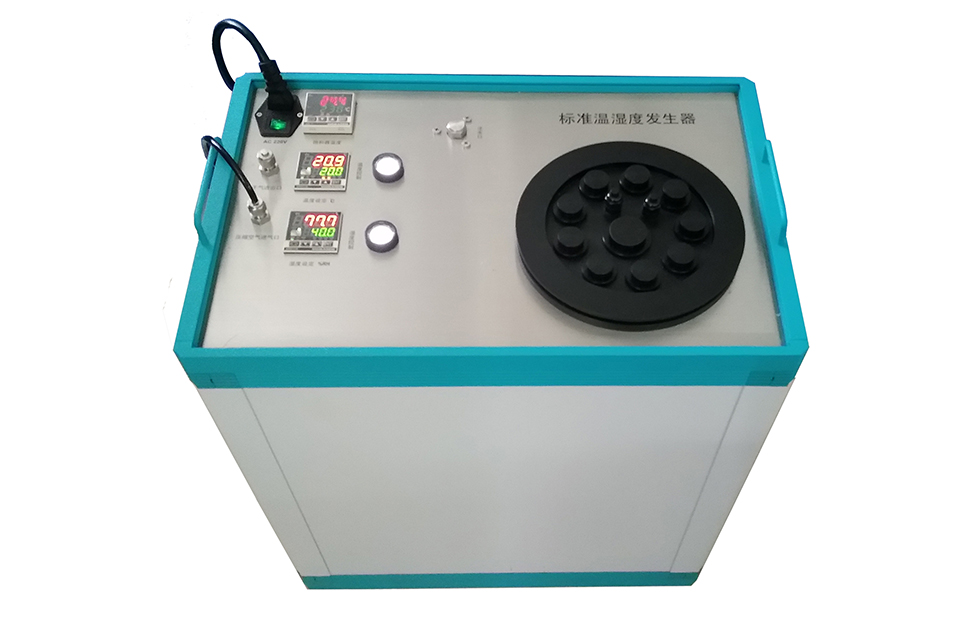

The operating principle of THG-100 temperature and humidity generator adopts the mixed dry-wet air flow method. The gas produced by the miniature oil-free air compressor passes through the automatically regenerative air source dryer, and the dry gas generated is divided into two ways, one way through the dry air flow control, and the other way through the saturated wet air flow control into the measuring chamber. The mixting ratio of dry gas and saturated wet air is set by the humidity controller, and this ratio and the current temperature determine the relative humidity of the measuring chamber.
The temperature and humidity probe measures the current temperature and humidity of the measuring chamber, and feeds the measurement parameters to the humidity controller and temperature controller to accurately control the current temperature and humidity value of the measuring chamber. The temperature setting is realized by the temperature controller through controlling the heating and cooling device, and the ventilation circulation system ensures the average field of the temperature and humidity of the measuring chamber.
Technical Data
|
Operating range
|
Temperature
|
5 ... +50℃ (the minimum temperature is more than 20℃ below the ambient temperature)
|
|
Humidity
|
Humidity control only:
|
|
5~95%RH
|
|
Temperature and humidity control:
|
|
5%RH～95%RH (when the temperature in the test chamber is higher than the ambient temperature within 3℃)
|
|
5%RH～90%RH (when the temperature in the test chamber is lower than the ambient temperature within 5℃)
|
|
5%RH～80%RH (when the temperature in the test chamber is lower than the ambient temperature within 15℃)
|
|
Fluctuation
|
Temperature
|
±0.1℃
|
|
Humidity
|
±0.2%RH
|
|
Accuracy1)
|
Temperature
|
±0.1℃ (20±5℃)
|
|
Humidity
|
±1.0%RH (20℃)
|
|
Measuring chamber size
|
Chamber size
|
φ150×200mm
|
|
Effective size
|
φ150×100mm (More than 100mm from the bottom of the chamber within effective measurement temperature range)
φ150×150mm (More than 50mm from the bottom of the chamber at normal temperature)
|
|
Measuring chamber cover plate 1
|
Material
|
Black POM
|
|
Measuring hole specification
|
Aperture: φ15mm
|
Quantity: 5
|
|
Aperture: φ12mm
|
Quantity: 3
|
|
Aperture: φ10mm
|
Quantity: 1
|
|
Aperture: φ3mm
|
Quantity: 1
|
|
Aperture: M36*1.5mm2）
|
Quantity: 1
|
|
Aperture: φ6mm (adjustable extraction vent)
|
Quantity: 2
|
|
Other specifications customizable
|
|
Measuring chamber cover plate 2
|
Material
|
Transparent POM
|
|
Measuring hole specification
|
Aperture: φ3mm
|
Quantity: 1
|
|
Aperture: M36*1.5mm
|
Quantity: 1
|
|
Aperture: φ6mm (adjustable extraction vent)
|
Quantity: 2
|
|
Uniformity
|
Temperature
|
±0.1℃ (Effective area horizontal direction)
|
|
Humidity
|
±0.1%RH (Effective area horizontal direction)
|
|
Power supply
|
Voltage
|
220V ± 10%AC
|
|
Power consumption
|
≥ 500W
|
|
Weight
|
Host
|
20kg
|
|
Air compressor
|
10kg
|
|
Overall size
|
Host
|
530×330×600mm (L×W×H）
|
|
Air compressor
|
340×160×320mm (L×W×H)
|
1) Accuracy is guaranteed by a built-in temperature and humidity sensor
2) The measuring hole is used to install the dew point probe
