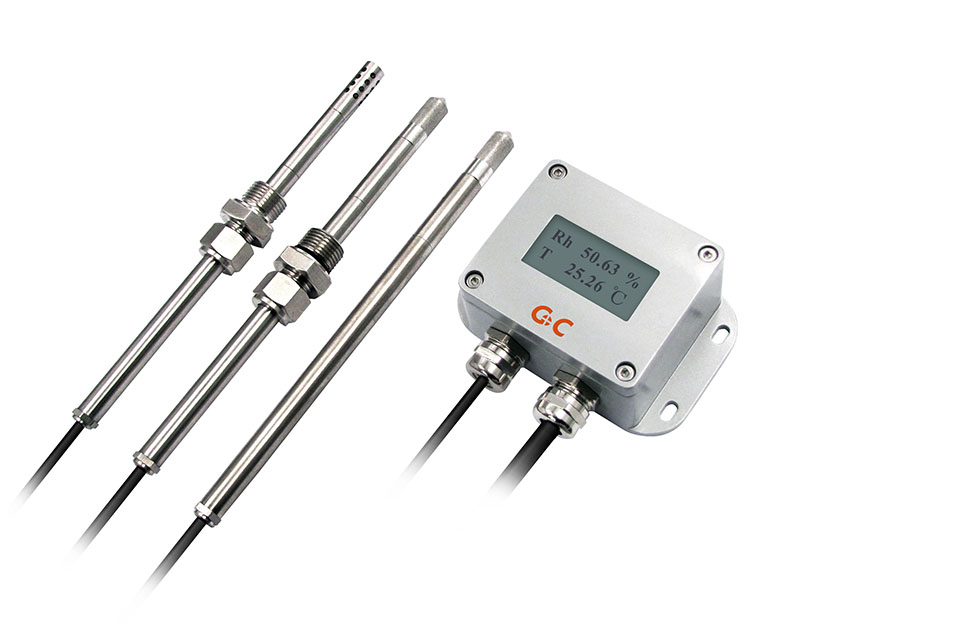

TH230 Harsh Industrial Grade Multi-Parameter Temperature and Humidity Transmitter

In the extreme high and low temperature and high humidity environment, humidity measurement faces great challenges. The core device of TH230 adopts PT1000 temperature-sensitive resistor and high molecular humidity-sensitive capacitor that can withstand the extreme high and low temperature and high humidity environment. The working measurement temperature can be up to -40~190℃. At the same time, the parasitic parameters of the signal cable are compensated by algorithm, and the maximum 20m signal cable can also ensure high precision measurement.

TH230 can output not only temperature and relative humidity, but also dew point, frost point, wet bulb temperature, enthalpy value, partial pressure of water vapor, mixing ratio, absolute humidity, water activity, dissolved water content in oil and other humidity parameters. In addition, the TH230 can also have field display with the display content customizable by the user, and two ways of temperature and humidity parameters can be displayed.

Technical Features

Output signal: 4 ... 20mA, 0 ... 10V or RS485

Output parameter: temperature, relative humidity, dew point, frost point, wet bulb temperature, enthalpy value, partial pressure of water vapor, mixing ratio, absolute humidity, water activity, dissolved water content in oil

Display module: optional

Filter: stainless steel sintering, PTFE, stainless steel pore

Shell material: Aluminium alloy

Temperature range: -40 ... 190℃

Typical Applications

Papermaking process

Tobacco process

Naval vessel

Lubricant

Transformer oil product monitoring

Pharmaceutical drying equipment

Other harsh industries

Technical Data

Input and output

Operating voltage	24V DC±20%	Current output	Two ways 4 ... 20mA RL < 500 Ohm
Power consumption	＜ 30mA (current or voltage output)	Voltage output	Two ways 0 ... 10V
			Channel precision: ±0.2%FS
	＜15mA (digital output)	Digital output	RS485 (Modbus RTU)

Measurement Parameter

Relative humidity		Temperature
Measurement range	0 ... 100%RH	Measurement range	−40 … +190°C
Measurement precision	±1%RH (0 … 90%RH & 20℃)	Measurement precision	±0.2°C
Calibration error	±0.5%RH (0 … 90%RH)	Calibration error	±0.1°C (20°C)
	±0.8%RH (40 … 95%RH)
τ₆₃ response time	30s (probe fitted with stainless steel sintered filter)	- -	- -
Humidity sensitive element	High molecular polymer humidity-sensitive capacitor	Temperature sensitive element	Pt1000 (Grade 1/3B, DIN EN 60751)

The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.

Technical Specification

Wiring conneciton	The maximum cable diameter of the terminal is 1.5mm²	Operating temperature	Transmitter (without display): -40 ... 60℃;
Cable connector	M16*1.5 gland connector (threading diameter 4.5~10mm)		Transmitter (with display): -20 ... 60℃
Shell material	Aluminium alloy		Probe: -40 ... 190℃
Probe protection	Stainless steel sintering, H2O2, PTFE	Storage temperature	-20 ... 60℃
Protection grade	IP65
Electromagnetic compatibility	EN61326-1 EN61326-2-3
