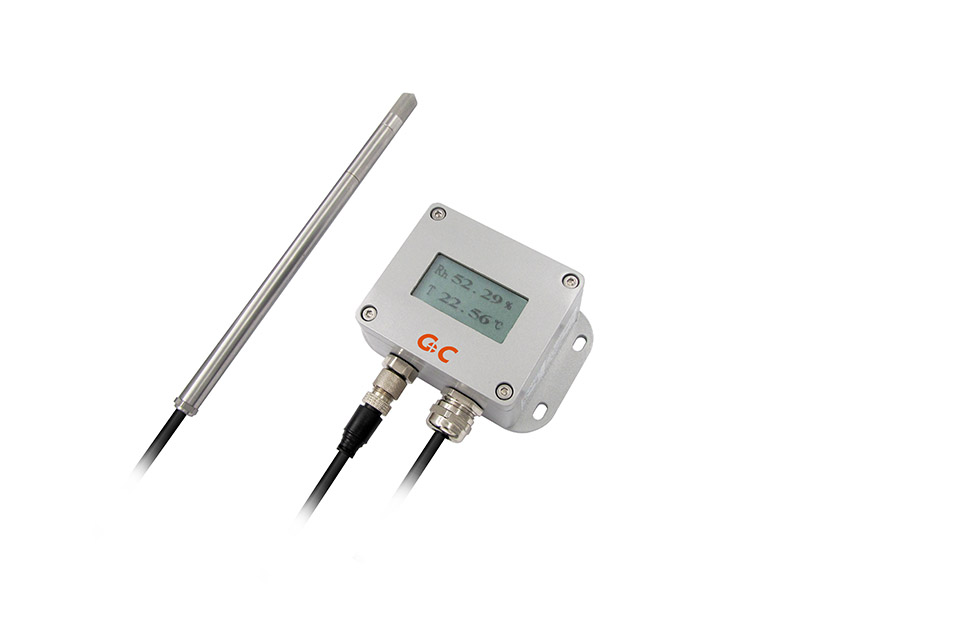

TH160EX Industrial-Grade Intrinsically Safe and Explosion-Proof Multi-Parameter Temperature and Humidity Transmitter

         In the field of fine industry, clean rooms, laboratories or other high-standard spaces require strict control of temperature and humidity; However, the dangerous and explosive volatile gases may be produced in some areas, so the temperature and humidity sensor needs to have explosion-proof function.

       TH160EX is specially used for the temperature and humidity measurement in explosive and hazardous gas environments. In addition to temperature and humidity parameters, it can also measure other humidity parameters such as dew point, frost point, enthalpy value. Especially for the biopharmaceutical clean room O3 or VHP sterile environment, the probe can be equipped with VHP filter PF04, which micropores are filled with the MnO2 composite catalyst with a particle diameter of about 10um; When in touch with the filter, VHP or O3 will be decomposed into H2O and O2 to achieve the purpose of protecting the probe and humidity-sensitive element.




Technical Features

Output signal: two ways 4~20mA or RS485

   Output parameter: temperature, relative humidity, dew point, frost point, wet bulb temperature, enthalpy value, partial pressure of water vapor, mixed ratio, absolute humidity

Shell material: Aluminium alloy

Explosion-proof class: Ex ia II C T4 Ga

Calibration interface: single-point or two-point calibration via calibration button

Installation method: wall, pipe, split probe, wall-mounted split probe

Display module: fixed display or touch display


Typical Applications

Environment monitoring of explosive gas in fine industy


Technical Data

Input and output

Operating voltage

24V DC ±20%

Current output

... 20mA  RL < 500 Ohm

Power consumption

< 20mA (current output)

Output channel precision: ±0.2%FS (full scale)

< 10mA (digital output)

Digital output

RS485 (Modbus RTU)

Measurement Parameter

Relative humidity





Temperature



Measurement range

... 100%RH



Measurement range

−40 … +80°C

Measurement precision

±1%RH (0 … 90%RH & 20℃)



Measurement precision

±0.2°C

Calibration error

±0.5%RH (0 … 90%RH)



Calibration error

±0.1°C (20°C)



±0.8%RH (40 … 95%RH)







τ63 response time

30s (probe fitted with stainless steel sintered filter)



- -

- -

Humidity sensitive element

High molecular polymer humidity-sensitive capacitor



Temperature sensitive element

Pt1000 (Grade 1/3B, DIN EN 60751)




The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.


Technical Specification

Wiring connection

The maximum cable diameter of the terminal is 1.5mm2

Cable connector

M16*1.5 gland connector (threading diameter 4.5~10mm)

Shell material

Aluminium alloy

Protection grade

IP65

Operating temperature

With display: -40 ... 80℃

Probe protection

Stainless steel sintering, H2O2, PTFE, etc.

Without display: -20 ... 80℃

Electromagnetic compatibility

EN61326-1  EN61326-2-3

Storage temperature

-20 ... 60℃


Data download:

TH160EX Industrial-Grade Intrinsically Safe and Explosion-Proof Multi-Parameter Temperature and Humidity Transmitter Product Manual
