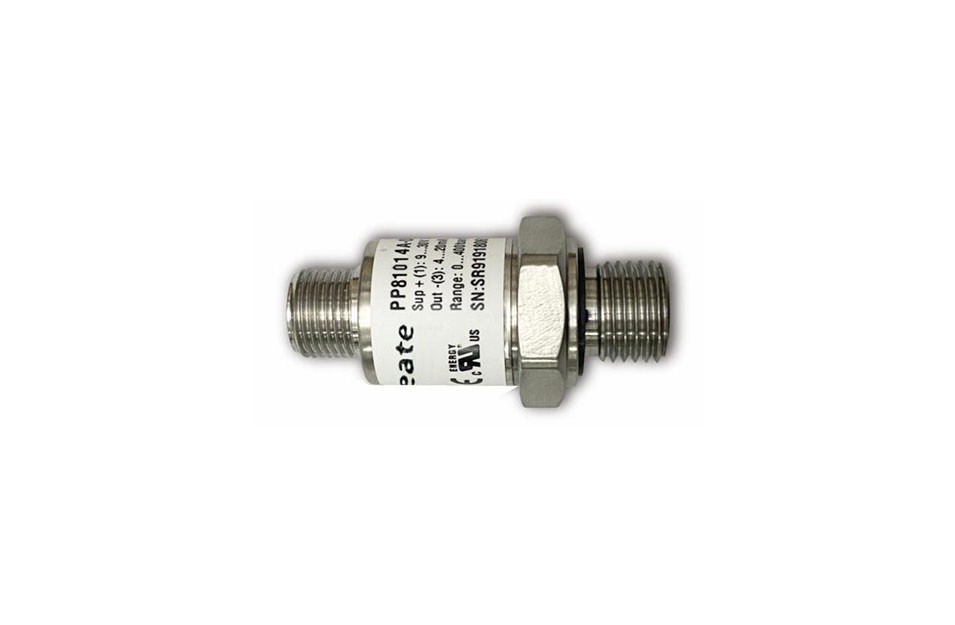

PP810 HVAC and Clean Industrial Pressure Transmitter
PP810 is an economical pressure transmitter based on diffused silicon technology, with high precision and good stability. It is widely used in engineering machinery, vessel and other industries. The user can choose the output signal according to the need. There are two ways to choose: current type and voltage type; The current type is 4~20mA, and the voltage type is 0~5V, 1~5V, 0~10V, 1~10V, 0.5~4.5V and so on. PP810 has a minimum pressure measurement range of 0~1bar and a maximum of 0~2000bar. It can measure a variety of non-corrosive, non-hazardous gas and liquid medium.
Typical Applications
Engineering machinery
Vessel
HVAC
Equipment mating
Technical Features
Stable performance, excellent EMC performance
Pass high and low temperature, salt fog, temperature and humidity tests
Compact design; resistance to high frequency vibration, shock
Technical Data
Input and output
|
Operating voltage
|
24V DC ±20%
|
|
Current output
|
4 ... 20mA RL < 500 Ohm
|
|
Power consumption
|
Current output: ＜ 15mA (typical value)
|
Voltage output
|
0 ... 5V; 0 ... 10V
|
|
|
Voltage output: ＜ 10mA
|
|
Channel precision: ±0.2%FS
|
Measurement Parameter
|
Measurement range
|
0...1bar to 0...250bar (optional)
|
|
Sensor
|
Diffused silicon technique
|
|
Measurement precision
|
A1: ±0.25%FS (FS indicates full scale)
|
τ63 response time
|
≤ 0.5ms
|
|
|
A2: ±0.5%FS
|
Temperature characteristics
|
< 0.03%FS/℃
|
|
Overload pressure
|
300%FS
|
Temperature compensation
|
-25...+85℃
|
|
Bursting pressure
|
500%FS
|
|
Long-term stability
|
≤ ±0.1%FS/year
|
The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.
Technical Specification
|
Wiring connection
|
The maximum cable diameter of the terminal is 1.5mm2
|
|
Operating temperature
|
-40...+125℃
|
|
Temperature compensation
|
-25...+85℃
|
|
Fluid temperature
|
-40...+125℃
|
|
Storage temperature
|
-40...+135℃
|
|
vibration resistance (10~2000Hz)
|
≤20g
|
|
EMC
|
EN 6100-4-2/3/4/5
|
|
Load
|
RL ≥ 5kΩ
|
|
Protection grade
|
IP68
|
|
|
|
Data download:
PP810 HVAC and Clean Industrial Pressure Transmitter Product Manual
